Universal mounting bracket for PVC roofs with waterproofing Solatech DIM PVC
Code: DIM-PVC
Delivery within one week
to any location in the Czech Republic
Guaranteed delivery
undamaged goods via our own transport
Own warehouses
strategically located in Ostrava and Brno
Favourable terms
for our wholesale partners
Product detailed description

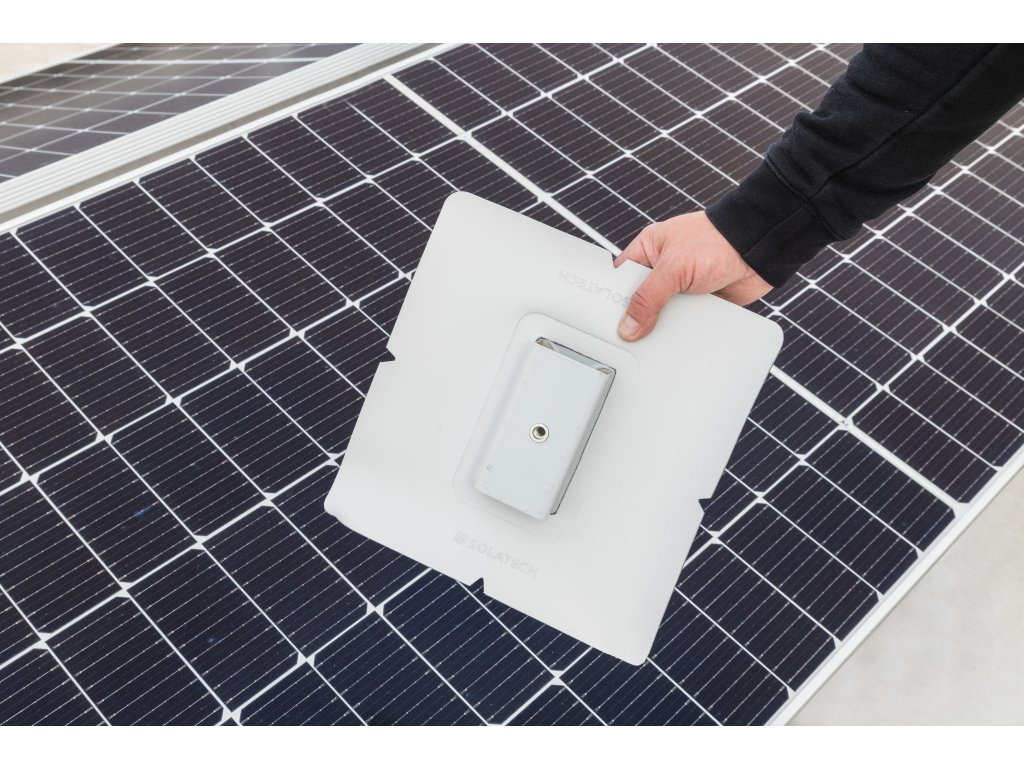

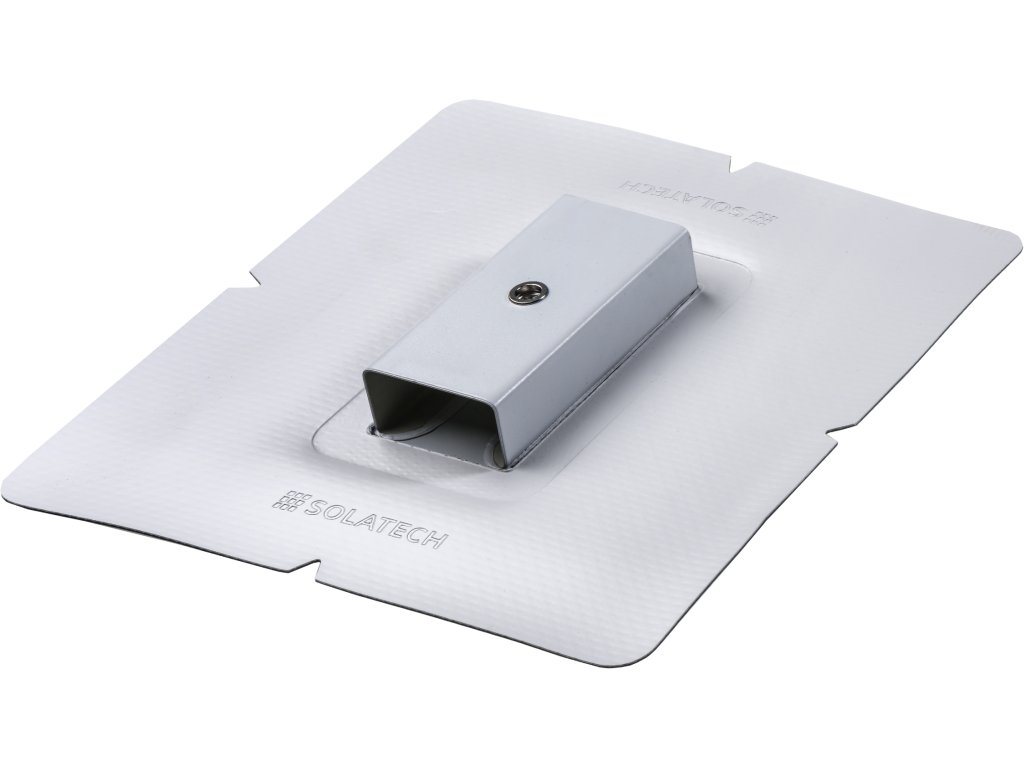

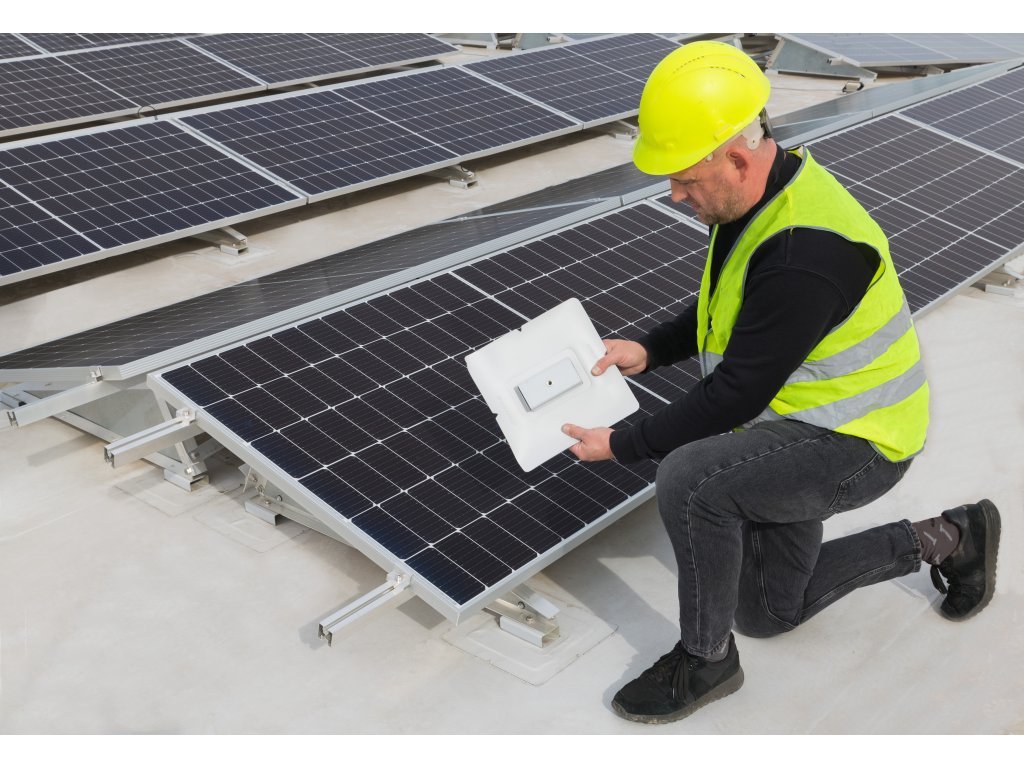

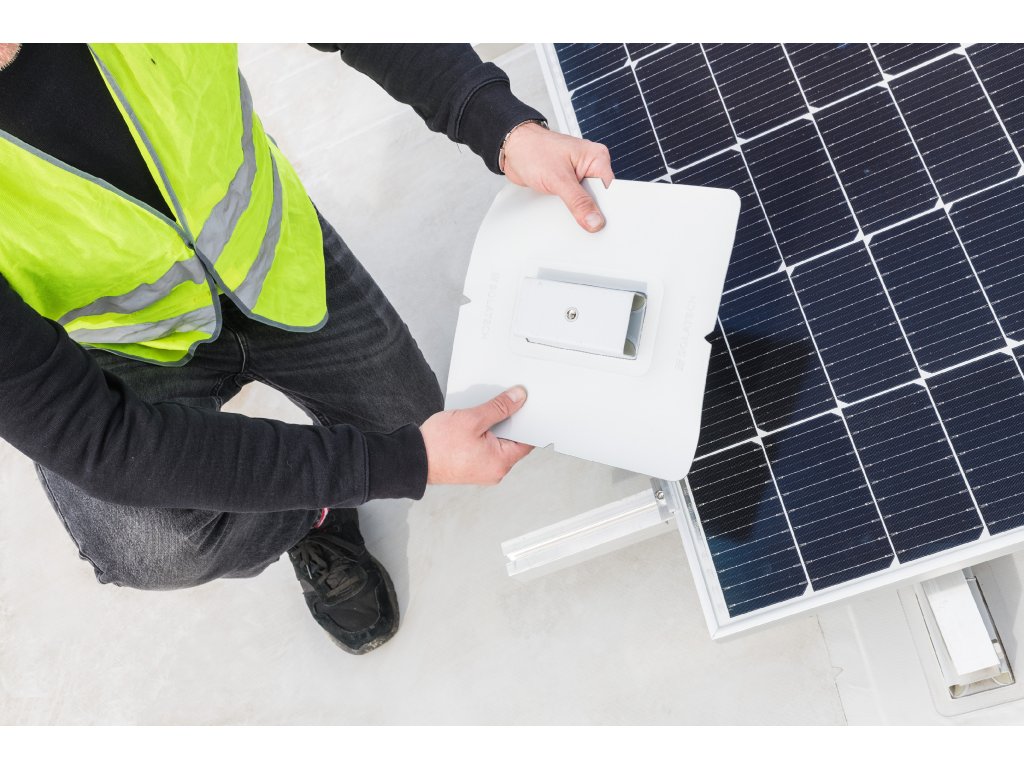

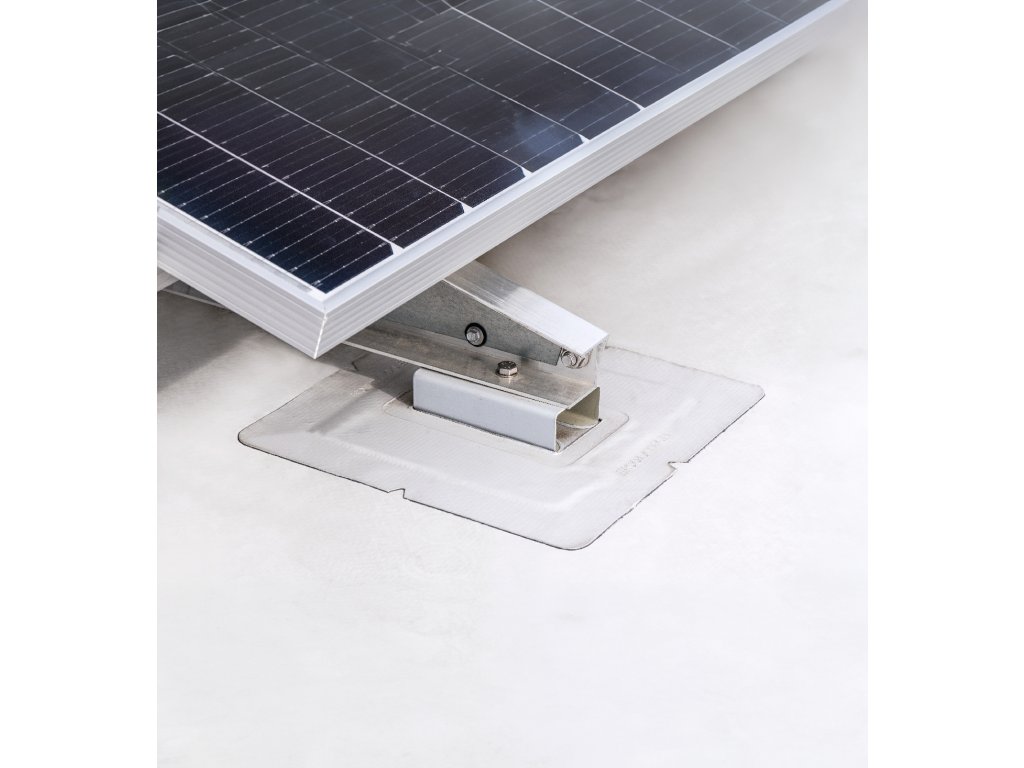

Looking for a safe way to anchor photovoltaic systems or technical equipment on a PVC roof? The universal bracket Solatech DIM PVC is a stabilization element designed to create secure anchoring points on roofs with PVC waterproofing membranes. It is suitable for both flat and sloped roofs with an inclination of up to 30° and enables mounting of photovoltaic structures, support grids, and pipe routes. The bracket is factory-fitted with an M10 threaded insert for direct anchoring of PV mounting systems.
Why is Solatech DIM PVC so popular?
- Easy application
- The PVC sleeve allows a watertight connection using hot-air welding.
- Compatibility
- The M10 thread is ready for standard photovoltaic mounting systems.
- Reliable waterproofing detail
- The solution is designed with emphasis on long-term tightness and protection of the roof structure.
- Affordable price
- A reliable construction element with an excellent price-to-performance ratio.
- Fast installation
- Structural safety
- Tested load capacity of 1.3 kN enables use even on roofs with limited load-bearing capacity.
- Protection of waterproofing
- Minimizes the risk of water penetration even under long-term structural loads.
- Stable anchoring
- Mechanical connection to the load-bearing structure resists wind loads and uplift forces.
- Versatile use
- Suitable for PV systems, technical routes, and other mounted systems.
Your purchase is just the beginning
We offer technical support throughout the entire project. We will assist you with design details, installation, and assessment of suitability for a specific roof.
Technical specifications
- Designed for PVC waterproofing membranes
- Sleeve size: 280 × 280 mm

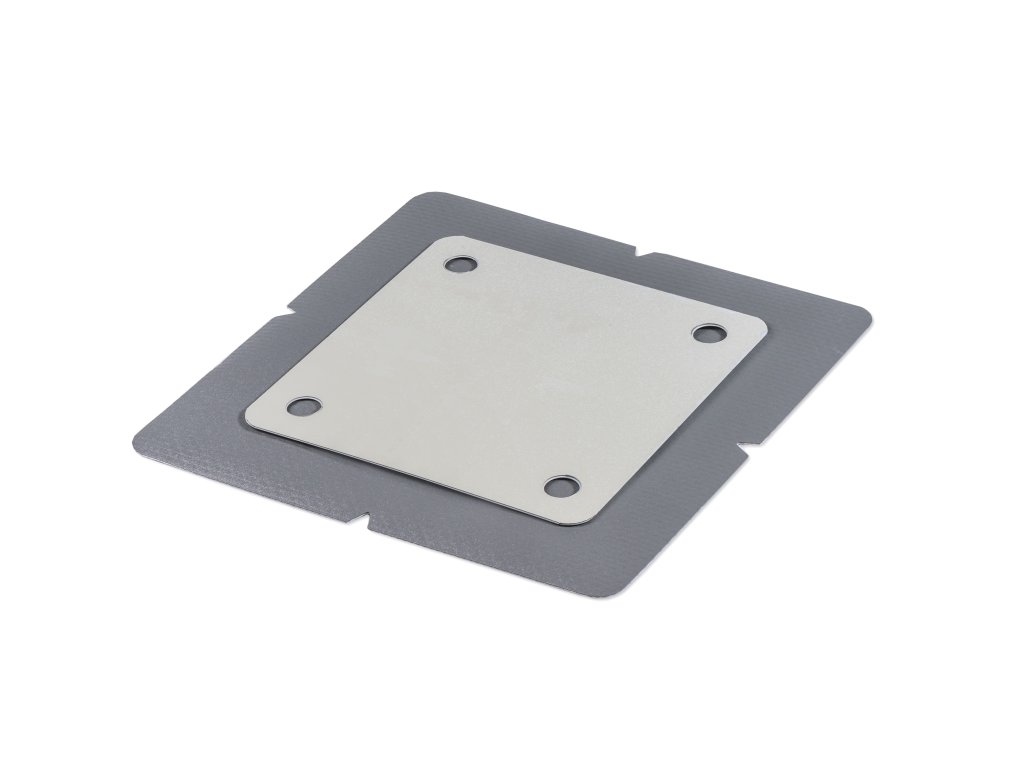

- Base dimension: 200 × 200 mm
- Threaded insert: M10
- Tested load capacity: 1.3 kN
- PVC layer thickness: 0.6 mm
- Cover sleeve thickness: 1.5 mm
- Warranty: 2 years
Additional parameters
| Category: | Solatech DIM Stabilization Elements |
|---|---|
| Velikost manžety fólie: | 280×280 mm |
| Rozměr spodního dílu: | 200×200 mm |
| Testovaná únosnost: | 1,3 kN |
